Incoloy 825 Chemical Injection Line

Short Description:

A general term for injection processes that use special chemical solutions to improve oil recovery, remove formation damage, clean blocked perforations or formation layers, reduce or inhibit corrosion, upgrade crude oil, or address crude oil flow-assurance issues. Injection can be administered continuously, in batches, in injection wells, or at times in production wells.


Product Detail

Product Tags

Application

In all fields of the oil and gas industry, chemicals are injected into process lines and fluids. Take oilfield services, chemicals are used to film the side of the wellbore for improved stability. In pipelines they avoid build-up and keep the infrastructure healthy.

Other Application:
In the oil and gas industry we inject chemicals in order.
To protect the infrastructure.
To optimize processes.
To assure flow.
And to improve productivity.

Product Display

Incoloy 825 Chemical Injection Line (2)
Incoloy 825 Chemical Injection Line (3)

Alloy Feature

Incoloy alloy 825 is a nickel-iron-chromium alloy with additions of molybdenum and copper. This nickel steel alloy’s chemical composition is designed to provide exceptional resistance to many corrosive environments. It is similar to alloy 800 but has improved resistance to aqueous corrosion. It has excellent resistance to both reducing and oxidizing acids, to stress-corrosion cracking, and to localized attack such as pitting and crevice corrosion. Alloy 825 is especially resistant to sulfuric and phosphoric acids. This nickel steel alloy is used for chemical processing, pollution-control equipment, oil and gas well piping, nuclear fuel reprocessing, acid production, and pickling equipment.

Tubing Process and Packing

Seamless: pierced, redrawn, annealed (multi-pass circulation process).

Welded: longitudinally welded, redrawn, annealed (multi-pass circulation process).

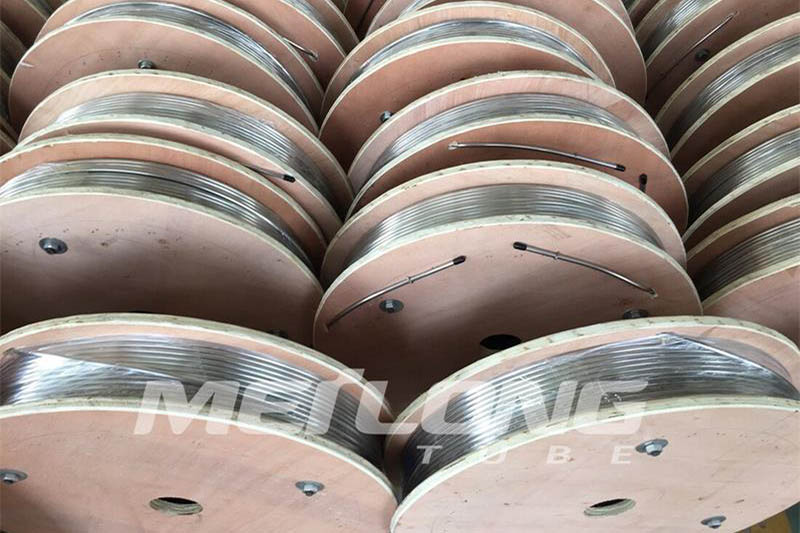

Packing: Tubing is level wound coiled on the metal / wooden drums or spools.

All drums or spools are packed in wooden crates for easy logistic operation.

Chemical Composition

Nickel

Chromium

Iron

Molybdenum

Carbon

Manganese

Silicon

Sulfur

Aluminum

Titanium

Copper

%

%

%

%

%

%

%

%

%

%

%





min.



max.

max.

max.

max.

max.





38.0-46.0

19.5-23.5

22.0

2.5-3.5

0.05

1.0

0.5

0.03

0.2

0.6-1.2

1.5-3.0

Norm Equivalence

Grade

UNS No

Euro norm

No

Name

Alloy ASTM/ASME EN10216-5 EN10216-5
825 N08825 2.4858 NiCr21Mo
