Hot Sale for Encapsulated Control Line Flatpack - Santoprene TPV Encapsulated Incoloy 825 Hydraulic Control Line – MEILONG Detail:

Product Introduction

Meilong Tube specially manufactures seamless and redrawn, welded and redrawn coiled tubing which are made from corrosion-resistant austenitic, duplex, super duplex stainless steels and nickel alloy grades. The tubing is used as hydraulic control lines and chemical injection lines specially serving oil and gas, geothermal industry.

A small-diameter hydraulic line used to operate downhole completion equipment such as the surface controlled subsurface safety valve (SCSSV). Most systems operated by control line operate on a fail-safe basis. In this mode, the control line remains pressurized at all times. Any leak or failure results in loss of control line pressure, acting to close the safety valve and render the well safe.

Product Display

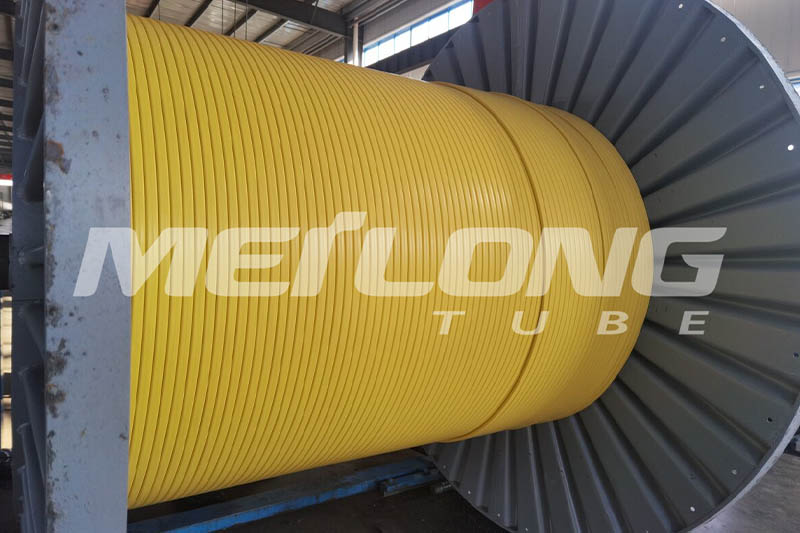

Santoprene TPV Encapsulated Incoloy 825 Hydraulic Control Line (1)

Technical Datasheet

Alloy	O.D.	W.T.	Yield Strength	Tensile Strength	Elongation	Hardness	Working Pressure	Burst Pressure	Collapse Pressure
	inch	inch	MPa	MPa	%	HV	psi	psi	psi
			min.	min.	min.	max.	min.	min.	min.
Incoloy 825	0.250	0.035	241	586	30	209	7,627	29,691	9,270
Incoloy 825	0.250	0.049	241	586	30	209	11,019	42,853	12,077
Incoloy 825	0.250	0.065	241	586	30	209	15,017	58,440	14,790

Dimensional Tolerance

ASTM B704 / ASME SB704, Incoloy 825, UNS N08825, Inconel 625, UNS N06625
ASTM B751 / ASME SB751
Size OD	Tolerance OD	Tolerance WT
1/8’’≤OD<5/8’’ (3.18≤OD<15.88 mm)	±0.004’’ (±0.10 mm)	±12.5%
5/8≤OD≤1’’ (15.88≤OD≤25.4 mm)	±0.0075’’ (±0.19 mm)	±12.5%

Meilong Standard
Size OD	Tolerance OD	Tolerance WT
1/8’’≤OD<5/8’’ (3.18≤OD<15.88 mm)	±0.004’’ (±0.10 mm)	±10%
5/8≤OD≤1’’ (15.88≤OD≤25.4 mm)	±0.004’’ (±0.10 mm)	±8%

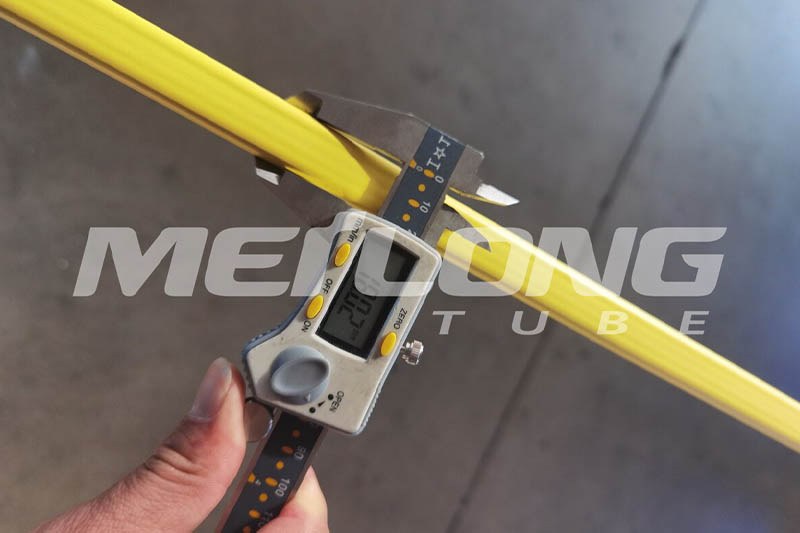

Product detail pictures:
